Fan Laser Combimeter + Measuring System Application Examples


Using the Fan Laser
Horizontal Laser Fan capable of height measurements using Tramís pointer.

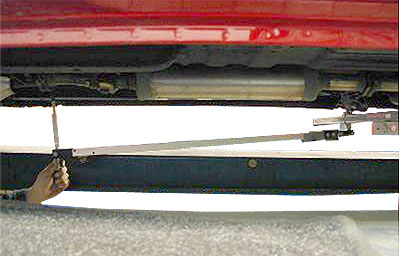

Length Measuring with Tram
and Height Measuring with Laser
Easily accomplished using Laser fan on Tramís pointer. Laser unit has built-in magnet and can be attached horizontal or vertical on the crossbar (Right in the picture). Tram Gauge is attached to Crossbar on a pivot ball joint.


Chamber wheel angles
with Laser Fan
By checking the top and bottom of the rim the correct chamber angle can be determend.  The Fan Laser has a vertical beam for width measurement and chamber angles.



Height with laser fan on a tape measure

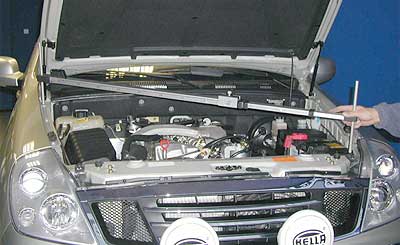

Cross measurements
with Tram

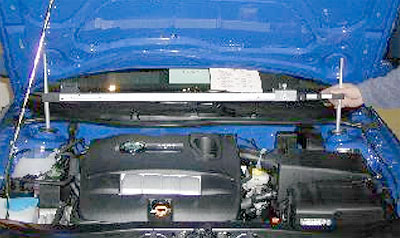

Simple quick mounting to vehicle.

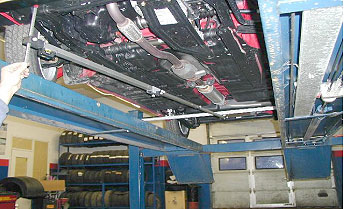

Length measurements with tram for center

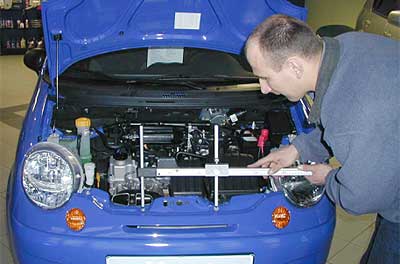

Underhood Measurements with Tram
